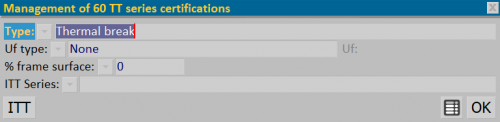

Series certification management

Note: To access this window in Opera Job Management: from the Archives menu, select the Systems button, then Series, and then the

button.

Type : from the associated menu, it is possible to choose the profile system type.
Uf type : from the associated menu, it is possible to choose the profile classification according to the UNI EN ISO 10077-1:2018 standard.
Uf: indicates the thermal transmittance value, when required by the selected configuration.
% frame surface : from the associated menu, it is possible to choose the surface ratio between the frame of the window/door and the entire frame.
ITT Series : from the associated menu, it is possible to choose the certifications associated with another series.

The button opens the series certification management window. For its use, see the Certifications archive chapter of this manual.
