Latest revision as of 15:11, 24 June 2025
N.B: This feature is dedicated to users working with Curtain Walls (optional)
How to enable it
- Open Workshop > Cutting and enable field enable cut grouping by job
- You will now see these new fields in your jobs
Job Management
- Choose ID code format to merge fills with identical size.
- In the Job Management panel, through the Print Options, print, for example, a Bill of Materials.

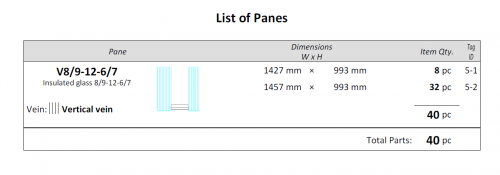

- In the printout the fills will be merged under the chosen code. In this case the code is %job_id%, which corresponds to the Progress of the job. The program assigns a numeric index to the merged cuts.
The No. pieces column will show the number of pieces merged; in the Ident. code column, the first number indicates the sequence of the job, the second is the numeric index assigned by the program.

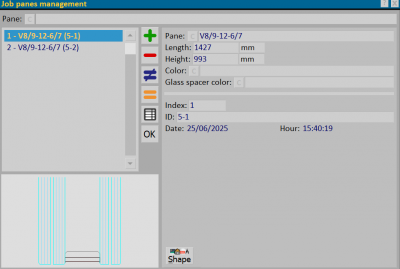

- The summary of the cuts and assigned codes can be viewed in the Job Fills Management' panel, which opens upon pressing the
button in the jobs archive panel.
